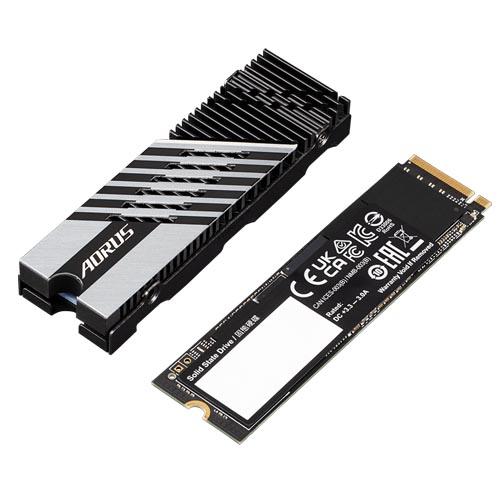

Gigabyte AORUS Gen4 7300 2 TB M.2-2280 PCIe 4.0 X4 NVMe SSD AG4732TB
Overview :
AORUS Gen4 7300 SSD delivers sequential read up to 7.3GB/s with 8 Channel controller- Phison E18- and 3D TLC NAND. The E18 controller is built with the advanced 12nm process ensuring sufficient computing power. Also it supports up to 8 NAND Flash channel with 32CE, DDR4 SLC caching and meets NVMe 1.4.
PCIe 4.0×4, NVMe 1.4 Interface
DDR4 DRAM cache
8 CH with 32 CEs
Supports SMART and TRIM
Support AES-256 Encryption
Offered with an optional aluminum Heat Spreaders
PS5 ready
Specification :
| Interface | PCI-Express 4.0 x4, NVMe 1.4 |
| Form Factor | M.2 2280 |
| Total Capacity | 2000GB |
| NAND | 3D TLC NAND Flash |
| External DDR Cache | DDR4L 2GB |
| Sequential Read speed | Up to 7300 MB/s |
| Sequential Write speed | Up to 6850 MB/s |
| Dimension | 80 x 22 x 2.3 mm (with heatsink: 80.5 x 11.25 x 23.5 mm) |
| Mean time between failure (MTBF) | 1.6 million hours |
| Power Consumption (Active) | Average: R : 6.6W, W : 6.7W |
| Power Consumption(Idle)(ASPT on) | <30mW |
| Temperature (Operating) | 0°C to 70°C |
| Temperature (Storage) | -40°C to 85°C |
| Warranty | Limited 5-years or 700TBW. |
