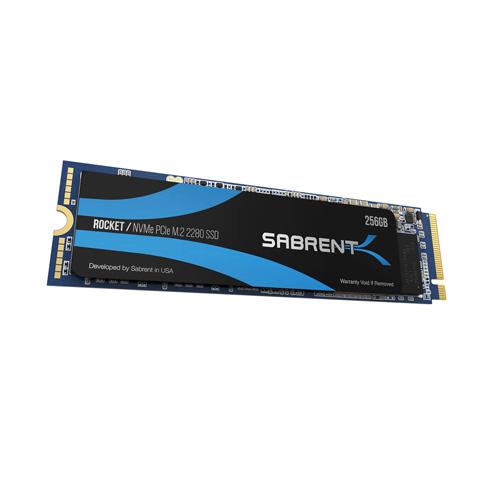

Sabrent 256GB ROCKET NVMe PCIe Gen3 x 4 M.2 2280 Internal SSD Solid State Drive SB-ROCKET-256
Overview :
The Sabrent 256GB ROCKET NVMe PCIe M.2 2280 Internal SSD High Performance Solid State Drive (SB-ROCKET-256) delivers all the advantages of flash disk technology with PCIe Gen3 x4 interface and it is fully compliant with the standard Next Generation Form Factor (NGFF), commonly known as M.2.
Based on 3D TLC NAND Flash memory, its performance speeds can reach up to 3100 MB/s (read) and 1050 MB/s (write). Power consumption is much lower than traditional hard drives, making it the best embedded solution for new systems.
Features:
• M.2 PCIe Gen3 x 4 Interface.
• PCIe 3.1 Compliant / NVMe 1.3 Compliant.
• Power Management Support for APST / ASPM / L1.2.
• Supports SMART and TRIM commands. Supports ONFi 2.3, ONFi 3.0, ONFi 3.2 and ONFi 4.0 interface.
• Advanced Wear Leveling, Bad Block Management, and Over-Provision.
Package contents:
• 256GB NVMe PCIe M.2 2280 SSD.
Specification :
| Model | DB-ROCKET-256 |
| Capacity | 256GB |
| Interface | PCIe Gen3x4 |
| NAND | BiCS3/BiCS4/B16 |
| CTL | E12/E12S |
| Certifications | CE,FCC,BSMI,RoHS |
| Max Sequential Read | 3100(MB/s) |
| Max Sequential Write | 1050(MB/s) |
| Rndm4K QD32(IOPS)Read | 167K |
| Rndm4K QD32(IOPS)Write | 256K |
| Power Consumption R/W | 5.1/3.1 |
| Power Supply | 3.3V |
| Form Factor | M.2 2280 |
| Height | 2.35mm |
| Width | 22mm |
| Length | 80mm |
| Operating Temperature | 0-70C |
| Storage Temperature | -40-85C |
| MTBF | 18,00,000 |
| Shock Resistant | 1500G |
| Data Correction | LDPC |
| Warranty | 5 Years |
